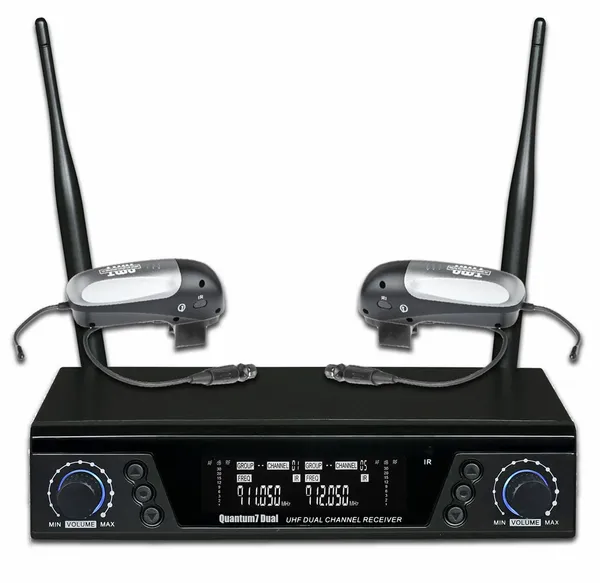

Quantum 7 Dual 2T Wireless System

About Q7 Dual System

About

• Dual Diversity receiver (Two mic / transmitters at the same time) with 100 Meter range.
• Available in multiple frequency bands, 600-928mhz.
• Dual receiver includes heavy duty metal chassis with rack ears.
• 100 Channels region dependent with up to 30MHz bandwidth.
• Compatible with all AMT microphones and Quantum 7 transmitters. (Q7 Clip-on, Q7B Beltpack, & Q7V Handheld.)
• XLR & 1/4in Outputs
• Optional rack tray available to mount two receivers  side by side for a total of 4 systems in one rack space.

Specifications

• UHF 600-928MHz frequency range. Region Dependent.  (902-928, 863-865, 606-630, & 823-832)
• PLL Synthesized circuit
• Pre-set 200(100*2) selectable frequencies.
• Digital Pliot tone-key control, high anti-interference capability
• IR sync downloading the frequency from receiver
• Optional function of Auto-scan the available clear frequency
• LCD status of frequency, AF and RF signal etc
• EIA standard 1U rack-mountable metal chassis
• Up to 100 meters line-of-sight range
• Ideal for professional stage, clubs, churches, and music.
• Optional hand-held microphone, bodypack transmitter, and instrument transmitter available.

Comprehensive Performance

• Carrier Frequency: UHF600-928MHz
• Frequency Stabilization: <±30ppm
• Dynamic Range: >95dB
• Total Harmonic Distortion：<0.5%
• Frequency Response: 40Hz-15KHz±3dB
• Audio Output Level: Unbalance 400mV

Receiver

• Power Supply: DC12-18V
• Consume Power: 1 WATT
• Signal/Noise Ratio: >105dB
• Image &Spurious Rejection: >80dB
• Border upon Channel Rejection: >80dB
• Receiving Sensitivity: 5dBuV
• De-Emphasis: 50uS
